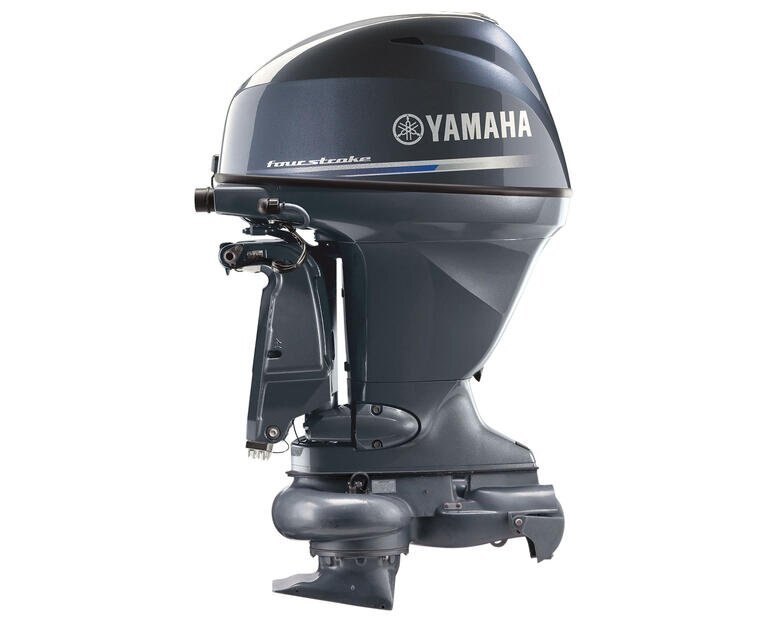

2025 Yamaha F40 JET DRIVE

When you need to go places no prop could, the 30-hp F40 Jet Drive is the perfect choice. Packed with power, it's also compact, quiet, lightweight and efficient.  ...

Overview

When you need to go places no prop could, the 30-hp F40 Jet Drive is the perfect choice. Packed with power, it's also compact, quiet, lightweight and efficient.



Specifications

Model
JET DRIVE
Category Name
Outboard Engines
Year
2025
Sale Type
New
Manufacturer
Yamaha
Quantity
0
Manufacturer Qty
0
Color
Bluish Gray Metallic

engine

Cooling
Raw water, Thermostatic Control
Exhaust
Through Propeller. Water-cooled, Labyrinth
Ignition
TCI micro-computer
Starting
Electric
RPM_Range
5,000-6,000
Gear_Ratio
Direct Drive
Gear_Shift
F-N-R
Engine_Type
Four stroke, In-Line 3-Cylinder
Lubrication
Wet Sump
Displacement
747 cc (45.6 ci)
Bore_&_Stroke
65 x 75mm (2.56 x 2.95in)
Fuel_Delivery
Multi-point electronic fuel injection
Induction_System
SOHC / 6 - valve
Alternator_Output
16 Amps
Compression_Ratio
9.4:1
Degree_of_Trim/Tilt
-3° through +20°/63° w/PTT (62° w/hydro-assit manual tilt)

dimensions

Dry_Weight
99 kg (219 lbs)
Shaft_Length
Fit 20" transom

highlights

2025 Yamaha F40 JET DRIVEEnhanced Performance and Fuel Efficiency

Multi-point precision fuel injection uses independent fuel injectors to deliver the precise amount of fuel to each cylinder.

2025 Yamaha F40 JET DRIVEIncredible Manoeuvrability

With no gearcase or propeller extending below the hull, a jet drive allows you to manoeuvre around or pass over obstructions that would limit the travel of a conventional, propped outboard.

key features

  • Maximum overall performance: Microcomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions. (F8 and up)
  • Ultra-low emissions: Yamaha jet drive four strokes are California Air Resources Board (C.A.R.B.) Three-Star Rated for Ultra-Low Emissions and meet all federal EPA requirements. When you need to get to where a prop won't take you, get an F90 Jet Drive. This 65hp engine is a marine-inspired 4-stroke that's as much as 50% quieter than a conventional 2-stroke, and up to 30% more fuel efficient, too. When you need to explore the shallow stuff, the F60 Jet Drive (40hp) is the perfect midrange outboard. It's power-packed, compact, quiet, lightweight, and efficient - as much as 30% more fuel-efficient than a conventional 2-stroke.



fuel and lubrication

Oil_Capacity
2L (2.1 qt)
Recommended_Oil
Yamalube 4-M FC-W 10W-30 or 20W-40
Recommended_Fuel
Unleaded Gasoline (Minimum Pump Octane 87)

features and benefits

MAXIMUM OVERALL PERFORMANCE

Microcomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions. (F8 and up)

ULTRA-LOW EMISSIONS

Yamaha jet drive four strokes are California Air Resources Board (C.A.R.B.) Three-Star Rated for Ultra-Low Emissions and meet all federal EPA requirements.

When you need to get to where a prop won't take you, get an F90 Jet Drive. This 65hp engine is a marine-inspired 4-stroke that's as much as 50% quieter than a conventional 2-stroke, and up to 30% more fuel efficient, too.

When you need to explore the shallow stuff, the F60 Jet Drive (40hp) is the perfect midrange outboard. It's power-packed, compact, quiet, lightweight, and efficient - as much as 30% more fuel-efficient than a conventional 2-stroke.
